Alta Qualidade Industrial Oxygen Generator Plant, Psa Oxygen Generator For Hospital, Oxygen Gas Plant Generator Fornecedores em China

Página inicial > Lista de Produto > Maquina de mercado egípcio > High quality different types O2 generator purity making filling machine plant for industrial medical

High quality different types  O2 generator purity making  filling machine  plant for industrial medical

  • High quality different types  O2 generator purity making  filling machine  plant for industrial medical
  • High quality different types  O2 generator purity making  filling machine  plant for industrial medical
  • High quality different types  O2 generator purity making  filling machine  plant for industrial medical
  • High quality different types  O2 generator purity making  filling machine  plant for industrial medical

High quality different types O2 generator purity making filling machine plant for industrial medical

    Quantidade de pedido mínimo: 1 Piece/Pieces
    Tempo de entrega: 1 dias
    Pacote: Wooden boxes in accordance with export requirements.
    transporte: Ocean
    Habilidade da fonte: 50 Set/Sets per Day
    porta: shanghai

Descrição do produto

Product Description

PSA Oxygen Generator

PSA oxygen generator takes 5A zeolite molecular sieve as adsorbent.The crystal of 5A zoelite molecular sieve is in a cage structure,with well-developed bug holes.There are powerful positive ions and oxygen anions in the bug holes,which make up a molecular sieve with strong polatity, but oxygen and nitrogen are non-polar molecules.When oxygen and nitrogen pass through 5A polar molecular sieve,oxygen and nitrogen produce inductive dipole under the effect of polar molecules;an induction force is production force produced by nitrogen which is easy to be polarized is far more than that of oxygen.Then nitrogen is adsorbed preferentially by 5A zeolite molecular sieve and enriched in thesolid phase of the molecules sieve,while oxygen is enriched in the ono-solid phase.This is resultant oxygen.
Meanwhile 5A molecular sieve is so featured that the volume of nitrogen adsorbed increases when compressed and decreases when decompressed. .Therefore,nitrogen can be adsorbed by compressing 5A zoelite molecular sieve and desorbed form the sieve by
decompressing it. In this way, oxygen can be produced.
Model Specifications
MS-QC5
MS -QC10
MS -QC30
MS -QC50
MS -QC100
MS -QC200
MS -QC300
MS -QC400
MS -QC500
Gas processing
(Nm3/h)
5
10
30
50
1 00
200
300
400
500
Oxygen (%)
=0.5
=0.5
=0.5
=0.5
=0.5
=0.5
=0.5
=0.5
=0.5
Poor nitrogen feed gas
Dew point(°C)
=-30
=-30
-30
=-30
=-30
=-30
=-30
=-30
=-30
Oxygen(ppm)
=5
=5
=5
=5
=5
=5
=5
=5
=5
Afer purication of high
purity Dew point(°C)
-60
-60
-60
-60
-60
-60
-60
-60
-60
Operating pressure
(Mpa)
=0.6
=0.6
=0.6
=0.6
=0.6
=0.6
=0.6
=0.6
=0.6
The reactor temperature
degree(°C)
300~350
300-
350
300-350
300-350
300-350
300-350
300-350
300-350
300-350
temperature adsorption
tower(°C)
350
350
350
350
350
350
350
350
350
Power consumption(kw)
4.8
6.8
10.5
15
30
50
60
80
1 00
Deoxidizer capacity(kg)
10
30
80
100
200
260
380
480
520
Dimensions(m)
(L xWxH)
0.8x  0.5xl.5
1.2x  0.8x2.4
1.5x   0.8x3.0
2.5x  1.5x3.0
3.0x     2.0x4.0
3.0x    2. 5x4.0
3.2x     2.5x4.5
3.4x     2. 5x4.6
3.6x      2. 5x4.6

Composition of PSA oxygen generator

◆Composition of PSA oxygen generator
◆Air compressor
◆Air pretreatment module(AC)
◆Air tank
◆Oxygen-bitrogen separating adsorber
◆Resultant oxygen buffer tank
◆Automatic control&detection system

Features of Shenlong PSA Oxygen Generator

●The equipment employs excellent adsorbent so that it is more energy-saving.
●Unique program-control valve, compact in structure, small in floor area, pleasing to eye, free of failure after 1million swithovers.
●The device is simple in procedure,compact in structure,small in floor area and minimal in space requirement. Unique patented
●compacting structure,equipped with automatic compensation when the molecular sieve becomes loose,which extends the life of sieve up to 10 years.
●The device enjoys excellent working stability and reliability . It boasts excellent safety when working under normal temperature and pressure.The service life of molecular sieve if used and maintained normally may reach 10 years.
●The adsorber is unique in construction.Distribution of air flow is very uniform,so that full use can be made of the molecular sieve.

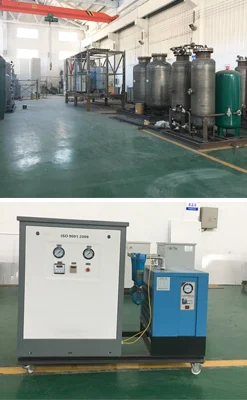

Details Images





1.
Using microcomputer control, higher security







2.
Skid-mounted structure, no installation required







3.
Oxygen System pipeline and valves after explosion-proof degreasing treatment, high safety








4.
Atlas Brand Air Compressor

5.


Special Silencer, sound < 40DB (a)

6.

Energy Conservation and environmental protection, low energy consumption, stable operation

7.

The fault self-diagnosis system is added to the equipment.
Related Products
Company Introduction
Our company was first established In 1966. We are specialized in designing and manufacturing non-standard pressure vessels of class A1, A2(high pressure), searnless cylinder of class B1,welded cylinder of class B2, special cylinders and motor vehicle cylinders of class B3, Valves, pressure pipe of class GB/GC, industrial anneal furnace, furnace roller, radiant tube etc. Over the years, our products are popular on the market.
With a registered capital of RMB 500million, it now has 319 engineers and technical staff. Granted by State General Administration Of The people's Republic of China For Quality Supervision And Inspection And Quarantine, Minsheng is awarded designing and manufacturing license of pressure vessels and gas cylinders in category A1, A2, B1, B2, B3, GB, GC. It is also awarded by ASME with U steel stamp and TPED certification by DNV. Besides, Minsheng also has the qualified certificates of import and export, enterprise credit rating AAA, measuring guarantee, 1S09001,1S014001, 1S018001 and other assurance certification.

Our Services & Strength

We will reply your enquiry in 24 hours working time.
We are dedicated to providing the best service to global cuetomers with patience and enthusiasm.
Product packaging
Certifications
Customer Photos
FAQ
Q1: What is the rotor speed for the air end?
A1: 2980rmp.

Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)

Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).

Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.

Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.

Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided
according to your needs.

Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.

Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.

Q9: Do you have spare parts in stock?
A9: Yes, we do.

Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
